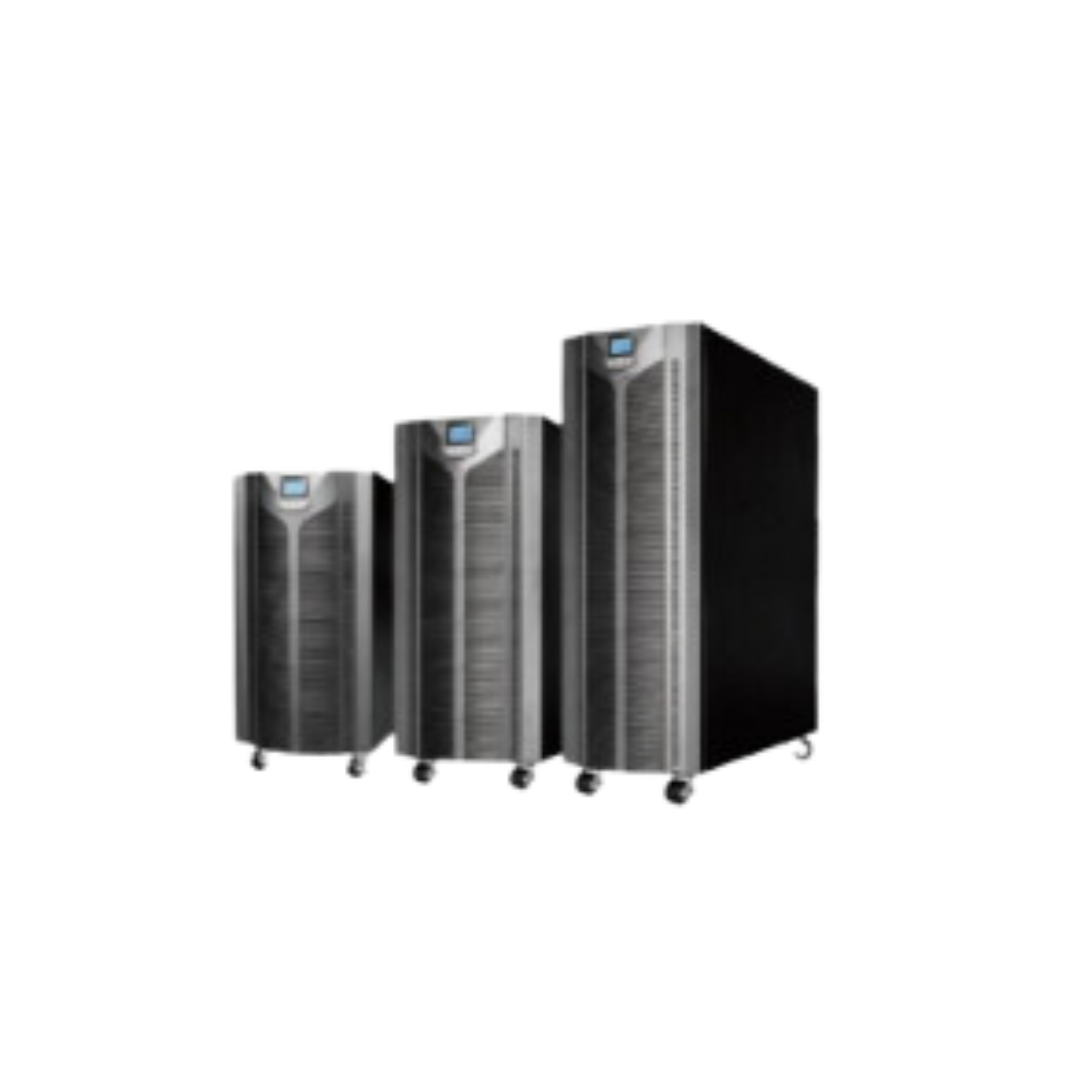

UPS Online Trifásica 40 KVA Tipo Torre Kaise

Rated voltage 380 / 400 / 415 Vac
Frequency range 40 ~ 70 Hz
Power factor ≥ 0,99
Bypass voltaje range – 60% ~ +20% (settable)
OUTPUT
Voltage 380 / 400 / 415 Vac
Voltage regulation ± 1%
Frequency Synchronized with utility in mains mode, 50/60 Hz ± 0.1% in battery mode
Power factor 1
THDV ≤ 1% (linear load), ≤ 5% (non – linear load)
BATTERIES
DC voltage ± 192 Vdc (± 180 ~ ± 276 Vdc settable)
Charging current (max.) 12 A 24 A 36 A
Recharger time Dependo n the capacity of battery
OTHERS
Dimensiones (W x D x H) (mm) 360 x 850 x 950 360 x 850 x 1200 440 x 850 x 1200
Operating Temperature 0°C ~ 40°C
Altitude ≤ 1000 m; above 1000m, downgrading 1% for each additional 100m
  Contactar a un ejecutivo

  • Despachos

    a todo Chile

  • Tiempo de entrega

    de 24 a 48 hrs en la RM

  • Retiro

    Stock disponible en bodega

¡Cotiza tu equipo!
